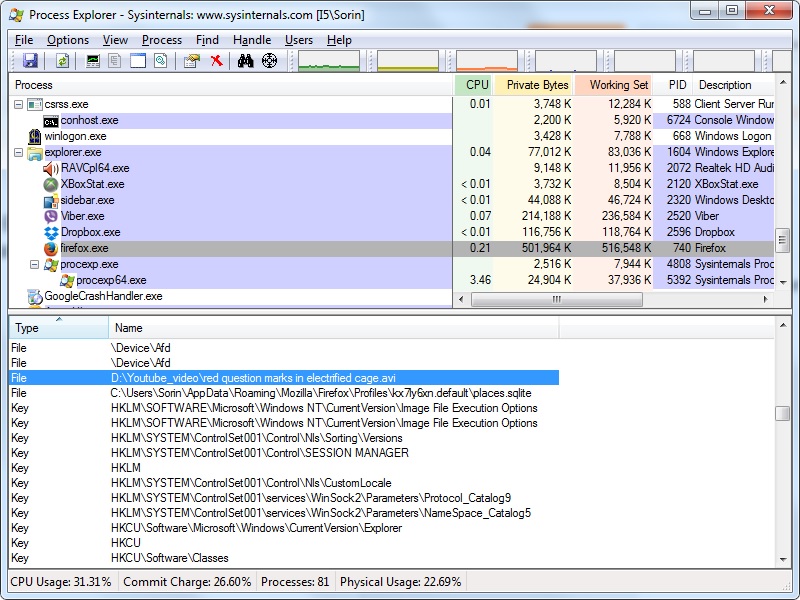

Process tree- Tool shows all the process in tree format which also includes ascending and descending mode.It shows the process parent\child relationships.Whenever a process creates another process,Windows puts the Process ID ( PID) of the creating process ( the parent ) into the internal data structure of the new process ( the child). Tool will populate only if it identify the path to the file and read from it which also need admin rights. Working set – Amount of physical memory assigned to the process by memory manager.ĭescription and company name : Extracted from the version info resources of the exe image file. Memory leaks are often exhibited by a continual rise in this value. Private bytes – no of bytes allocated and committed by the process for its own use and that are not shareable with other process. Process – column shows the name of the exe, along with its icon We can change the color by selecting configure highlight.Įach Column in the process represents some static or Dynamic attribute of the process and Dynamic attributes are updated at each automatic refresh interval. Newly process will be in green color for one sec and when it exit it will remain in red color for one second. net process because it has higher precedence than services. If the process belongs to more than one categories, the precedence order is ,jobs,services. These are process in which all threads are suspended and cannot be scheduled for execution. NET frameworkĭark gray : indicate suspended process.
#SYSTEM INTERNALS PROCESS EXPLORER WINDOWS#
Job is a windows construct that allows one or more process to be managed as a unit.jobs it is not highlighted by default
#SYSTEM INTERNALS PROCESS EXPLORER CODE#
Violet:: it denotes “ packed images” tool uses simple rule to identify program files that might contain executable code in compressed form ,encrypted form or both.
Pink : Designates services, process containing one or more windows services Light blue :: process that run on same user group account as Procexp. Process list is a table in which each row represents a process on the system and the column represent continually updated attributes of those process. Graphical representation of CPU activity, memory usage and I\O activity, both system wide and per-process.
#SYSTEM INTERNALS PROCESS EXPLORER .DLL#
Identifies all dynamic-link-library (DLL ) and mapped files loaded by a process and all handles to keneral obj opened by a processĭetailed metrics of memory usage and I/o and TCP/IP endpoints.
Identify which process owns any visible window. More Accurate indication of CPU consumption based on CPU cycle.
Highlights to call attention to new and recently exited process. Tooltips show Command line and other information Tree view shows parent\child process relationshipsĬolor coding to identify the process type ,such as services.Net process, process running as the same user as procexp, process that are related to job and packed images. Russinovich, Aaron Margosis and I hope it will give some idea about the functionality of the tool and I would highly recommend this book for the more information. Windows has always included the task manager to find the processes that are running on our system but it often doesn’t provide the deep enough information but in Process Explorer we have so many key features which helps to drill in to what was happening on a windows system from a process perspective.As a Windows Administrator we should know the features of the tool and I have described below some key features which was taken from the Windows Sysinternals Administrator’s Reference book by Mark E. Process Explorer is the most popular tool and it can be downloaded from sysinternals. Performance issues in Microsoft Windows system can be fixed by finding the running process at given time and also it will help to understand how our CPU and other resources are being used.
